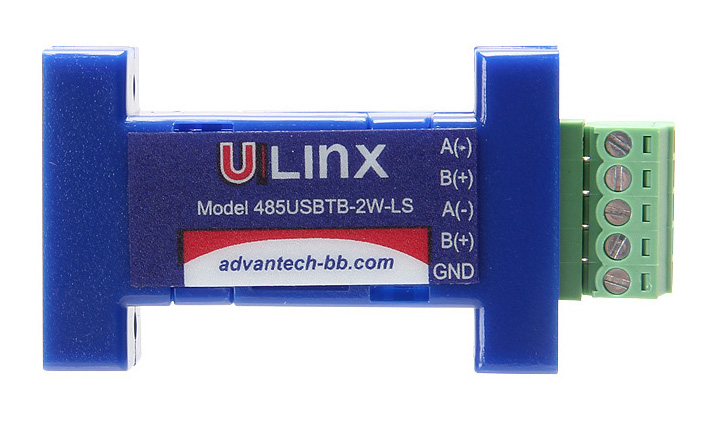

Advantech BB-485USBTB-2W

High Retention USB to TB RS-485 Converter

Advantech BB-485USBTB-2W
  • EigenschaftenEigenschaften
  • BeschreibungBeschreibung
  • Weitere InformationenWeitere Informationen
  • PDFPDF
  • Connect RS-485 Devices to your USB Port
  • Perfect for Field Service Applications
  • Small – Fits easily into any laptop bag
  • USB Port Powered
  • USB 2.0 (12 Mbps) Compatible
  • RS-485 Data rates up to 921.6 Kbps
  • Supports Windows 98, ME, 2000, XP, Vista, 7 (32/64 bit), 8 (32/64 bit)
Universal Serial Bus (USB) has become the connectivity workhorse of today’s PCs, replacing the familiar serial ports. However, many commercial and industrial devices still use the RS-485 interface. To connect these devices to modern PCs, you need a simple and reliable conversion solution. The 485USB9F-2W offers this solution in a space saving, USB Port powered package.

Simply install the drivers supplied on CD ROM and plug the converter into an available USB port on your computer or USB hub. The device will show up as an additional COM port in the Windows Device Manager which is fully compatible with your Windows applications. Choose the 485USB9F-2W for RS-485 2-wire applications. A one meter USB cable is included.

ProdGrafik

    SPECIFICATIONS


SERIAL TECHNOLOGY

    RS-485 2-Wire
    Data A(-), Data B(+), Ground

    RS-485 4-Wire
    TDA(-), TDB(+), RDA(-), RDB(+), Ground

    Connector
    Removable Terminal Block (28 to 16 AWG)

    Data Rate
    Up to 921.6 Kbps



USB TECHNOLOGY

    Connector
    USB Type B Female (High Retention)

    Standard
    2.0 (Backward Compatible)

    Data Rate
    12 Mbps



POWER

    Source
    USB Port

    Input Voltage
    5 VDC

    Consumption
    ~ 0.5 W (Low power device, draws less than 100 mA)



SOFTWARE

    Driver CD
    Windows 98, ME, 2000, XP, Vista, 7 (32/64 bit), 8 (32/64 bit)

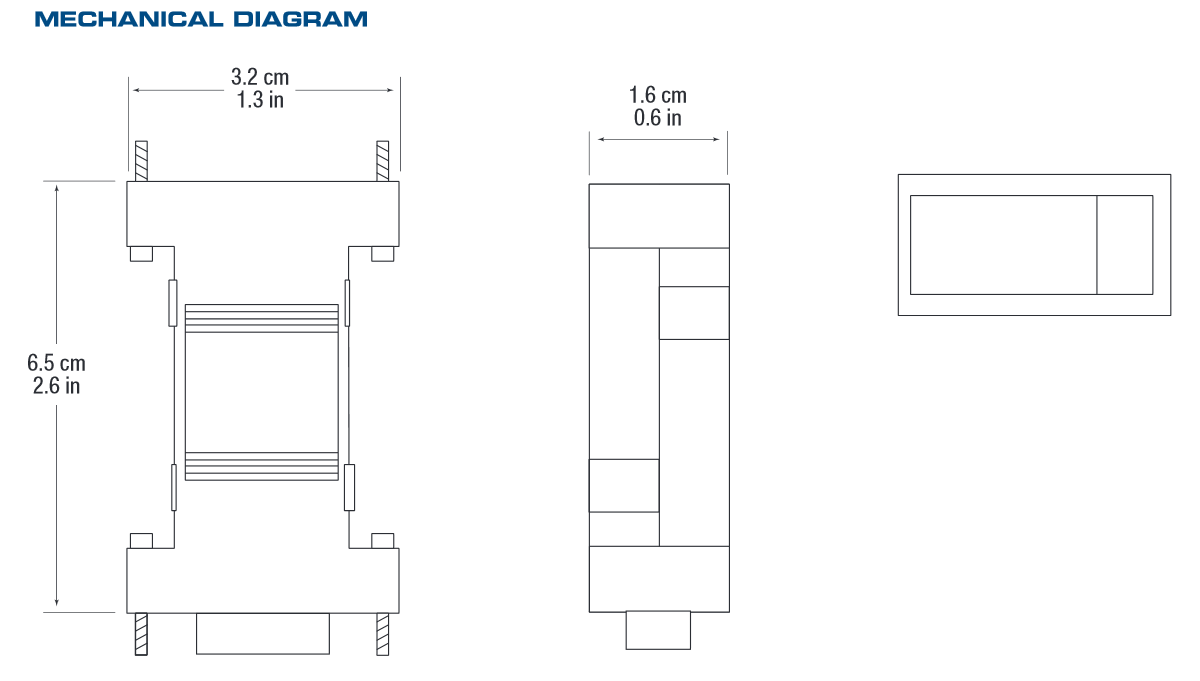

MECHANICAL

    Dimensions
    6.5 x 3.2 x 1.6 cm (2.6 x 1.3 x .6 in)

    Enclosure
    In-line mounted, plastic

    Weight
    0.23 lbs (104.3 g) with USB Cable



ENVIRONMENTAL

    Operating Temp
    32 to 158°F (0 to70 °C)

    Storage Temp
    -40 to 185 °F (-40 to 85 °C)

    Op Humidity
    0 to 95 % (Non-condensing)

    MTBF
    1869313 hours

    MTBF Method
    Parts Count Reliability Prediction



REGULATORY

    Approvals
    FCC, CE



CERTIFICATIONS

    IEC 61000-4-2
    IEC 61000-4-3
    IEC 61000-4-4
    IEC 61000-4-6
    EN 55022/CISPR 22



    ORDERING INFORMATION
    MODEL NUMBER DESCRIPTION
    BB-485USBTB-2W USB to RS-485 2-Wire Converter
    BB-485USBTB-4W USB to RS-485 4-Wire Converter
    BB-485USBTB-2W-LS USB to RS-485 2-Wire Converter (Locked Serial Number)
    BB-485USBTB-4W-LS USB to RS-485 4-Wire Converter (Locked Serial Number)
    BB-485USBTB-2W-A USB to RS-485 2-Wire Converter
    BB-485USBTB-2W-LS-A USB to RS-485 2-Wire Converter (Locked Serial Number)
    BB-485USBTB-4W-A USB to RS-485 4-Wire Converter
    BB-485USBTB-4W-LS-A USB to RS-485 4-Wire Converter (Locked Serial Number)
