Advantech BB IMC-770-SM

Managed Modular Media Converter, 1000Mbps, Single mode 131nm, 10km, SC

Advantech BB IMC-770-SM
  • EigenschaftenEigenschaften
  • BeschreibungBeschreibung
  • Weitere InformationenWeitere Informationen
  • PDFPDF
  • Variety of choices: multi-mode, single-mode or single-strand including SFP form factor
  • The modular, hot-swappable architecture reduces operational costs associated with product installation, upgrades, and maintenance
  • SNMP manageable
  • Supports configuration control
  • Supports Link Fault Pass Through (LFPT)

also known as iMcV 856-11951

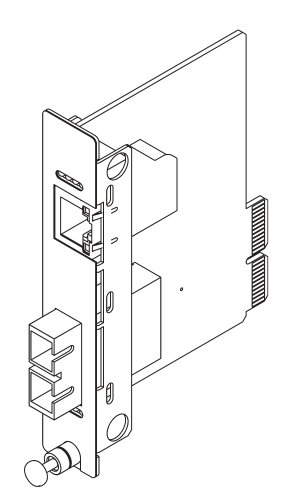

The IMC-771/771 series are slide-in module Ethernet-to-fiber media converters for the IMC-7xx chassis which support hot-swappable and easy installation. They allow network operators to incorporate multiple fiber types and wavelengths within a network. The IMC-770/771 can be monitored and controlled via a central site with IMC-710 SNMP management module by iView2, Telnet, or CLI while installed in a IMC-71x series chassis.

The IMC-771/771 offers a range of speeds up to Gigabit Ethernet and is available with SFP or build-in fiber connector. Multi-mode, single-mode fiber or double fiber capacity with single-strand which supports the transmission distance from 550m to 70km. The IMC-770/771 series feature in the Link Fault Pass Through (LFPT), a diagnostic feature that can enable or disable links to assist the end user in troubleshooting a failed segment and configuration control to retain the latest configuration regardless of how the initial configuration was setup.

The IMC-770I-2SFP converter is protocol-independent with dial SFP ports which can provide a single conversion between different wavelengths or single-mode and multi-mode fiber, single-mode to single-mode fiber, or multi-mode to single-strand fiber. Its SFP port must use an SFP of the same speed while allowing different fiber types. Additionally, the IMC-770I-2SFP and IMC-771I-SFP are industrial equipment devices. The unit operates in environments that demand extended operating temperatures.
ProdGrafik

Product Specifications

    * Port Configuration
    Total Port Number 2
    Ethernet Communication
    Fiber Port Number 1
    RJ-45 Port Number 1
    Coaxial Port Number 0
    Fiber Transmission Speed 10/100/1000 Mbps
    Fiber Port Optical Mode Single-Mode
    Fiber Transmission Wavelength 1310 nm
    Fiber Transmission Distance 10 km
    Fiber Port Connector Type SC Type x
    PoE Information
    PoE Port Number 0
    Mechanism
    Number of Slot 0

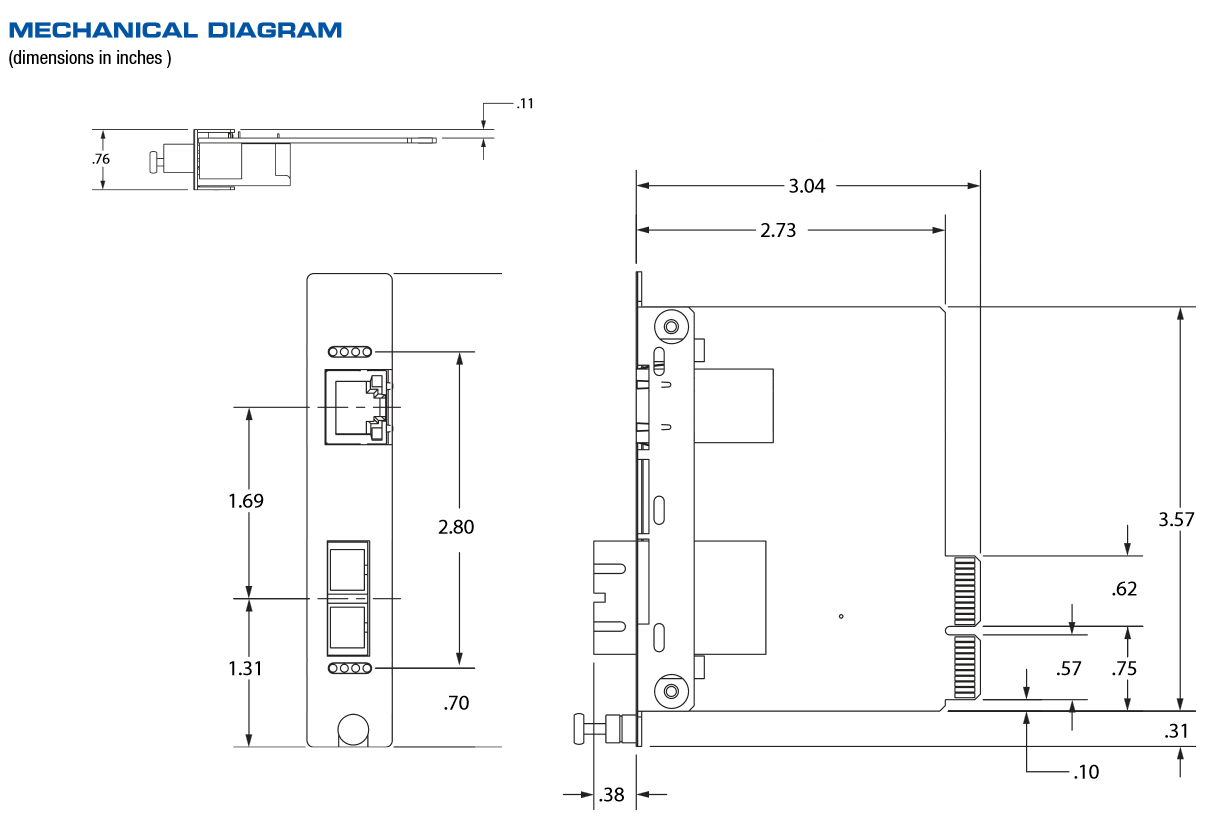

    Dimensions (W x H x D) 2.0 x 10.74 x 7.05 cm (0.78 x 4.19 x 2.75 in.)
    Weight 0.11 kg (0.24 lbs) x
    Environment
    Temperature (Operating Range) 0 ~ 50 °C (32 ~ 122 °F)
    Temperature (Storage Range) -25 ~ 70°C (-13 ~ 158°F)
    Humidity (Operating Range) 5 ~ 95% (non-condensing) x
    Certification
    EMC CE, FCC Class B



Ordering Information

    IMC-770 Series


Part Number Also Known As Ethernet Speed Optical Mode Wavelength Distance Optical Connector
IMC-770-MM 856-11950 10/100/ 1000Mbps Multi-Mode 850 nm 550 m 1 x SC
IMC-770-SM 856-11951 10/100/ 1000Mbps Single-Mode 1310 nm 10 km 1 x SC
IMC-770-SST 856-11940 10/100/ 1000Mbps Single-Strand 1310T/1550R 10 km 1 x SC
IMC-770-SSR 856-11941 10/100/ 1000Mbps Single-Strand 1550T/1310R 10 km 1 x SC
IMC-770-SSER 856-11943 10/100/ 1000Mbps Single-Strand 1550T/1310R 40 km 1 x SC
IMC-770-SFP 856-15410 10/100/ 1000Mbps Various Various arious 1 x SFP


    IMC-771 Series


Part Number Also Known As Ethernet Speed Optical Mode Wavelength Distance Optical Connector
IMC-771-MM 850-15511 1000Mbps Multi-Mode 850 nm 550 m 1 x SC
IMC-771-SM 850-15512 1000Mbps Single-Mode 1310 nm 10 km 1 x SC
IMC-771-SE 850-15513 1000Mbps Single-Mode 1310 nm 40 km 1 x SC
IMC-771-SXL 850-15515 1000Mbps Single-Mode 1550 nm 100 km 1 x SC
IMC-771-SST 850-15521 1000Mbps Single-Strand 1310T/1550R 10 km 1 x SC
IMC-771-SSR 850-15522 1000Mbps Single-Strand 1550T/1310R 10 km 1 x SC
IMC-771-SSET 850-15525 1000Mbps Single-Strand 1310T/1550R 40 km 1 x SC
IMC-771-SSER 850-15526 1000Mbps Single-Strand 1550T/1310R 40 km 1 x SC
IMC-771-SS4T 850-15529 1000Mbps Single-Strand 1490T/1550R 70 km 1 x SC
IMC-771-SS4R 850-15530 1000Mbps Single-Strand 1550T/1490R 70 km 1 x SC
IMC-771I-SFP-
(Wide Temp.)
850-18510 1000Mbps Various Various Various 1 x SFP
IMC-771I-2SFP
(Wide Temp.)
850-19500 10/100/ 1000Mbps
(Mode converter)
Various Various Various 2 x SFP


    * SFP fibers sold separately – available at www.advantech.com
    * Single-Strand fiber deploys in pairs or connect another compatible single-strand fiber product
